M.Sc. Thesis:

Photorealistic Rendering of Human Hair Fibers

Author:

Dr. Iman Sadeghi

Advisor:

Prof. Henrik Wann Jensen

University:

University of California San Diego

Abstract:

Photorealistic rendering of human hair has been a challenge task in computer graphics for many years. These challenges include coming up with a practical yet accurate light scattering model for individual hair fibers, handling the complex geometry of large number of hair fibers, properly simulating the global illumination and complex interaction of light and shadows between the hair strands, and overcoming aliasing problems due to the fine geometry of the hairs. In this paper, we present an overview of the physical and optical properties of human hair fibers, investigate the most prominent hair shading models, and at the end we critically analyze each shading model. We also briefly go over the approaches for simulating multiple scattering of light in hair rendering. We have implemented all of the shading models which have been discussed in the paper and we will discuss their strengths and weaknesses in detail. Furthermore, we discuss missing behaviors in current shading models compared to the experimental measurements and propose possible avenues of future research.

Resources:

Publication

CiteSeerX

Pages:

[01] [02] [03] [04] [05] [06] [07] [08] [09] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19]

Content:

[Page 1]

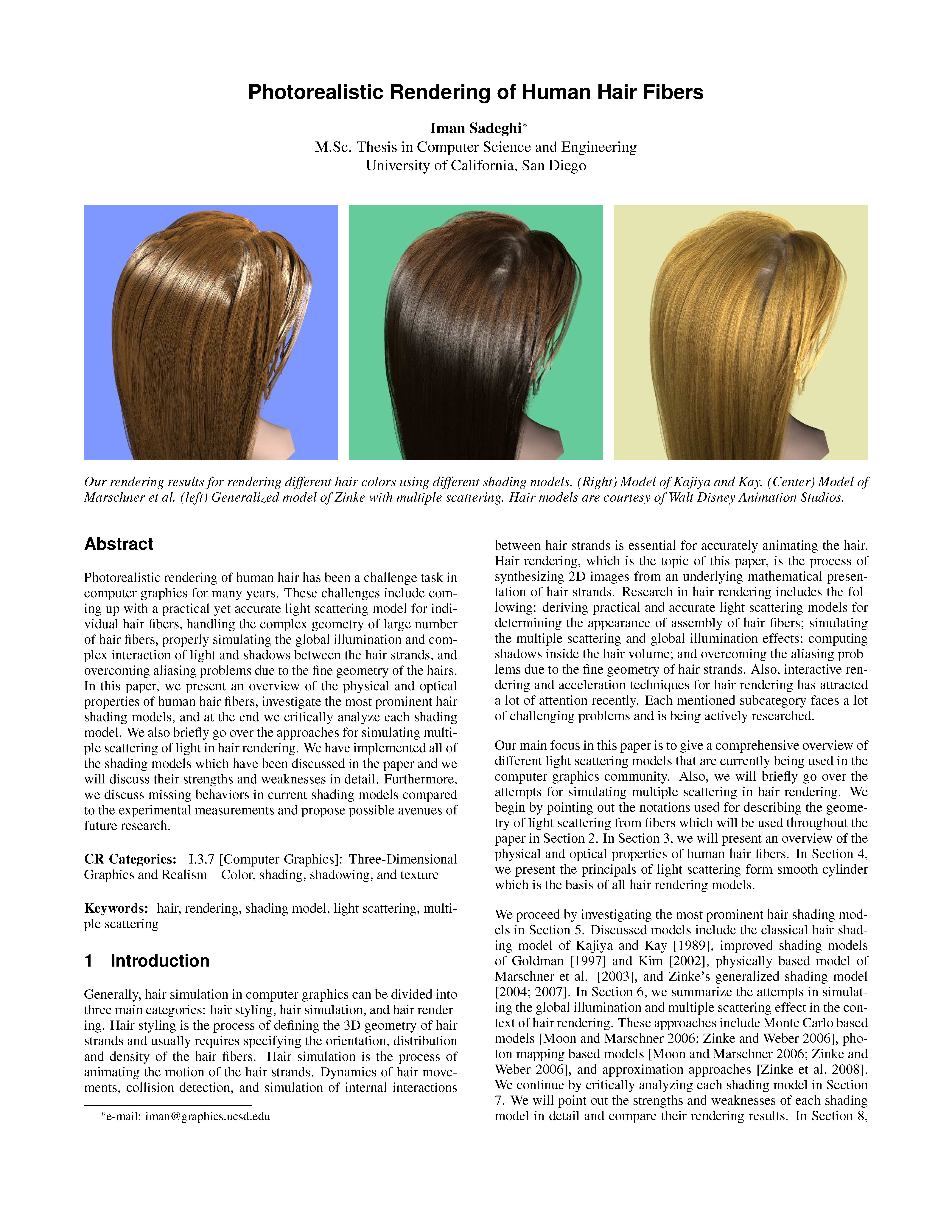

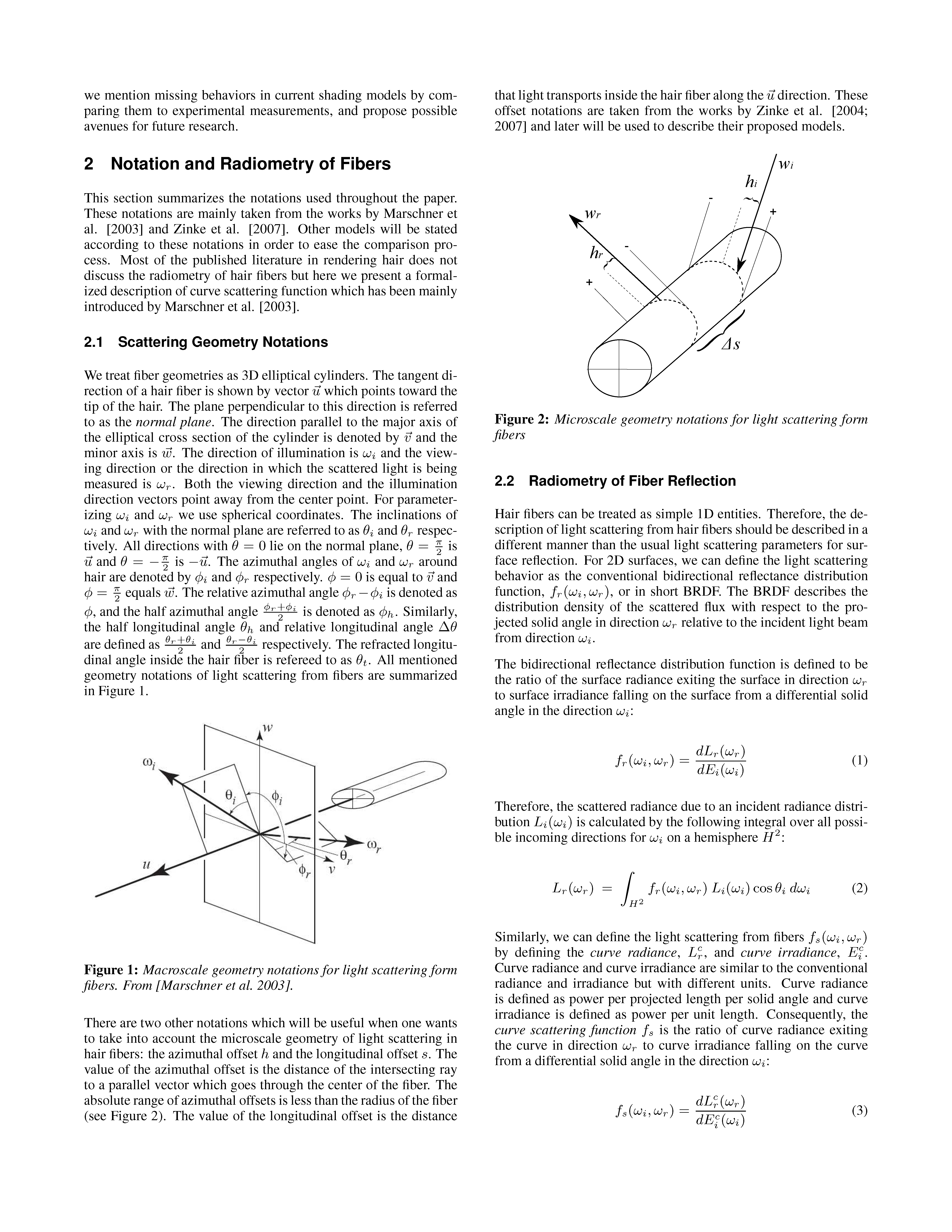

[Page 2]

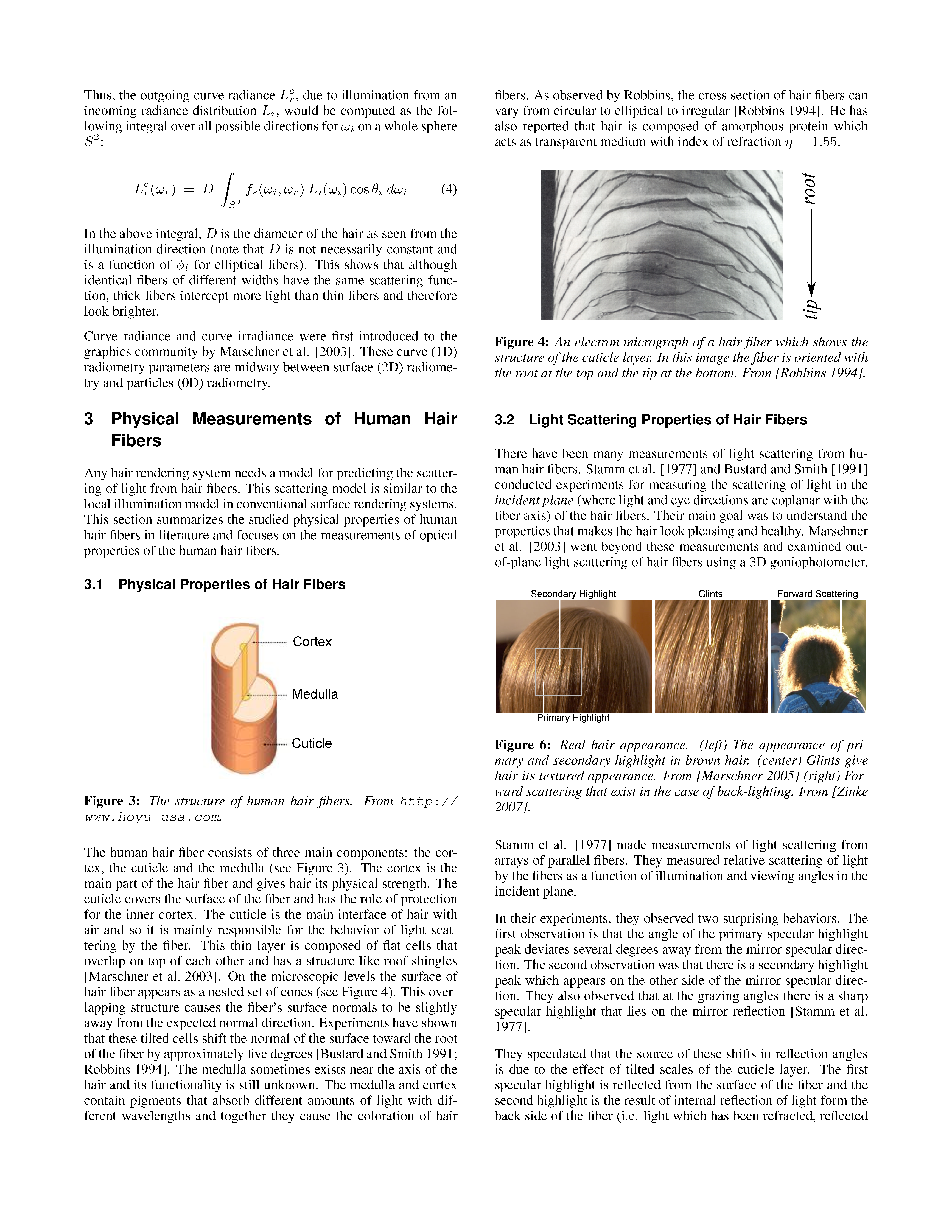

[Page 3]

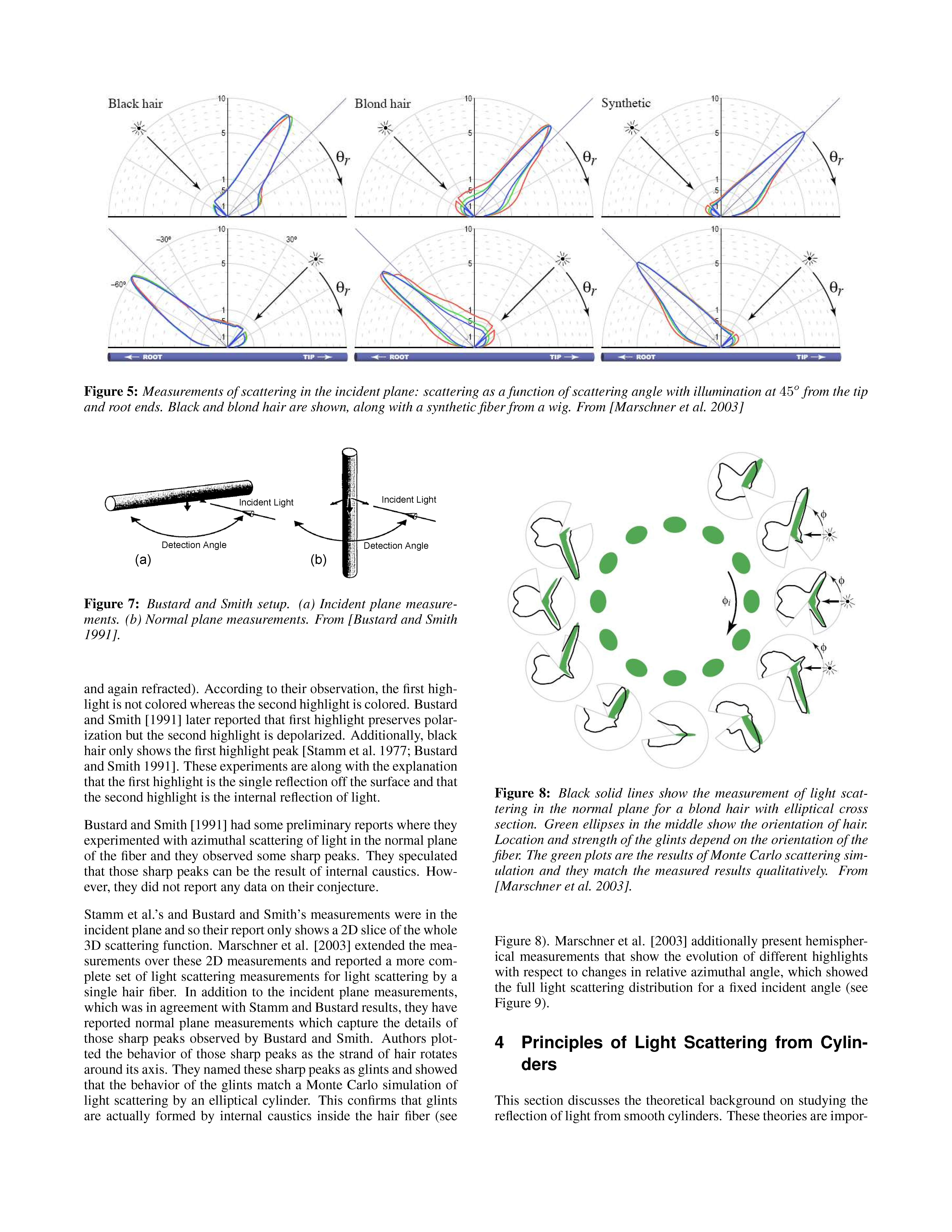

[Page 4]

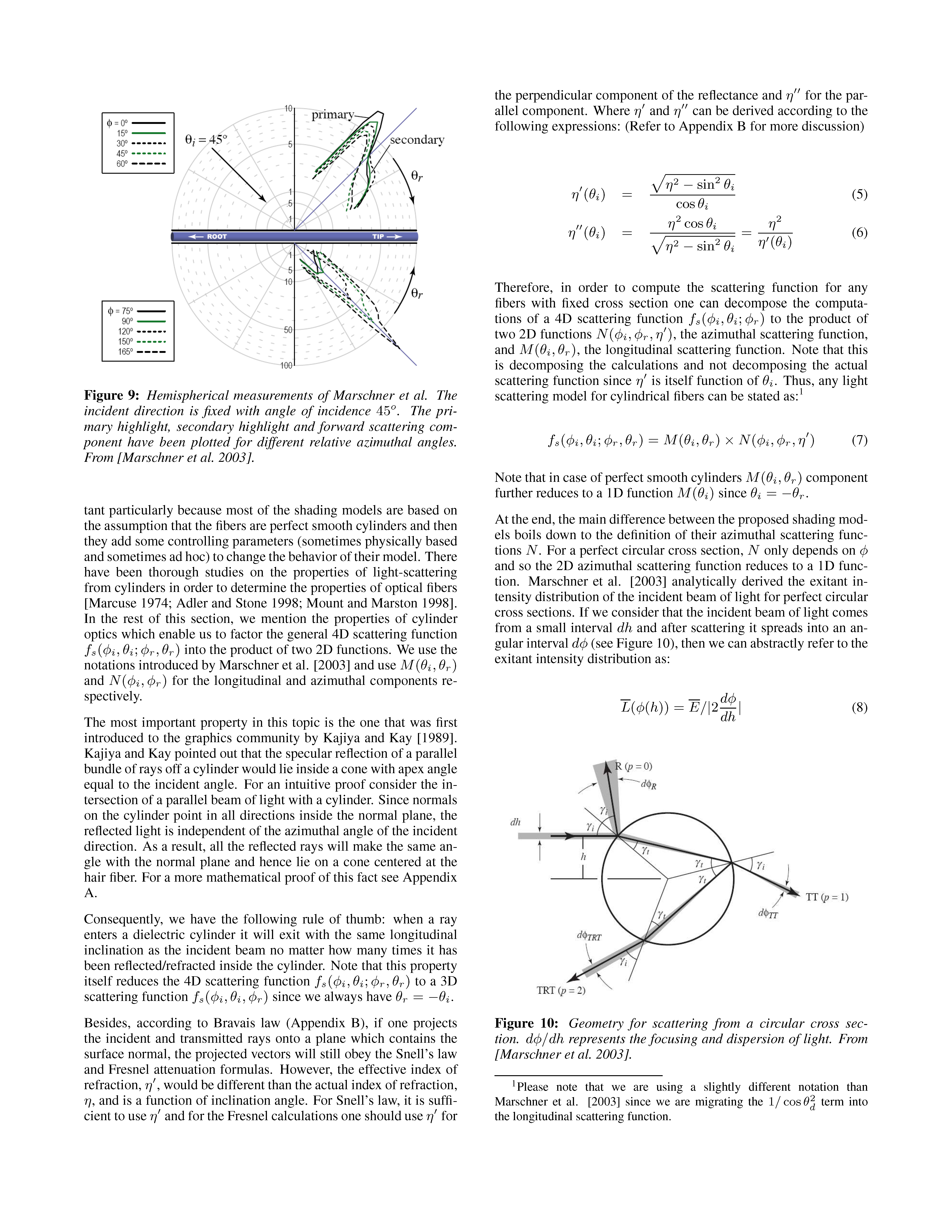

[Page 5]

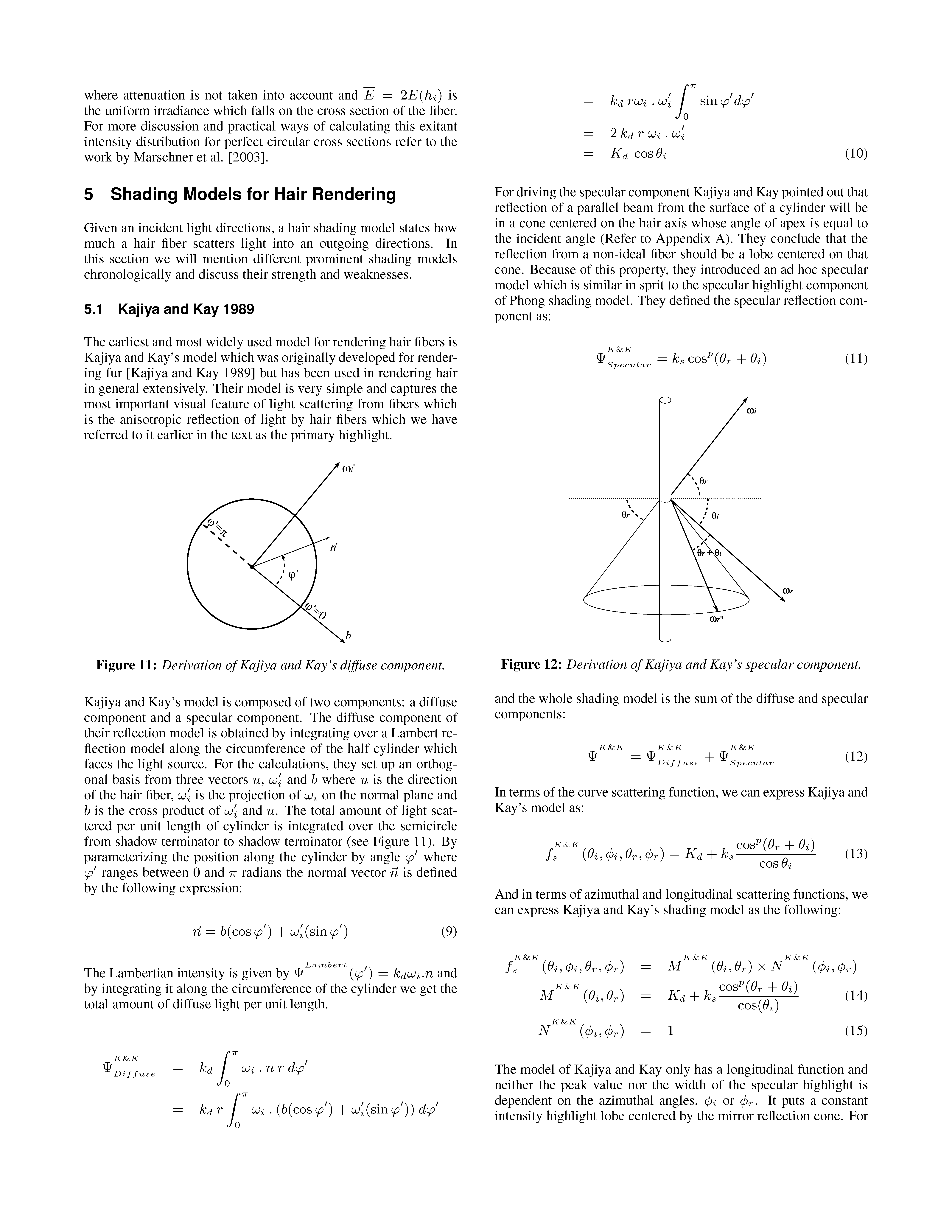

[Page 6]

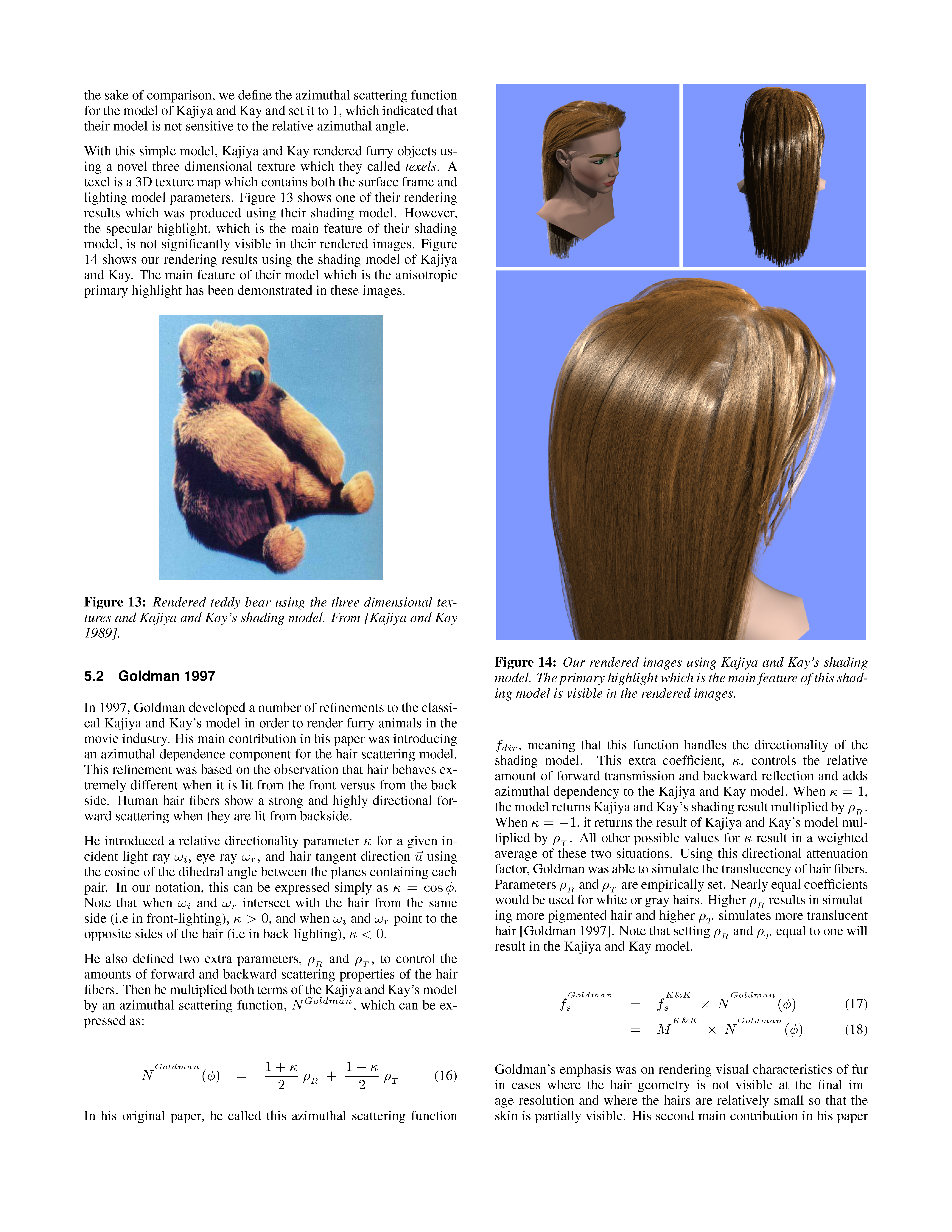

[Page 7]

[Page 8]

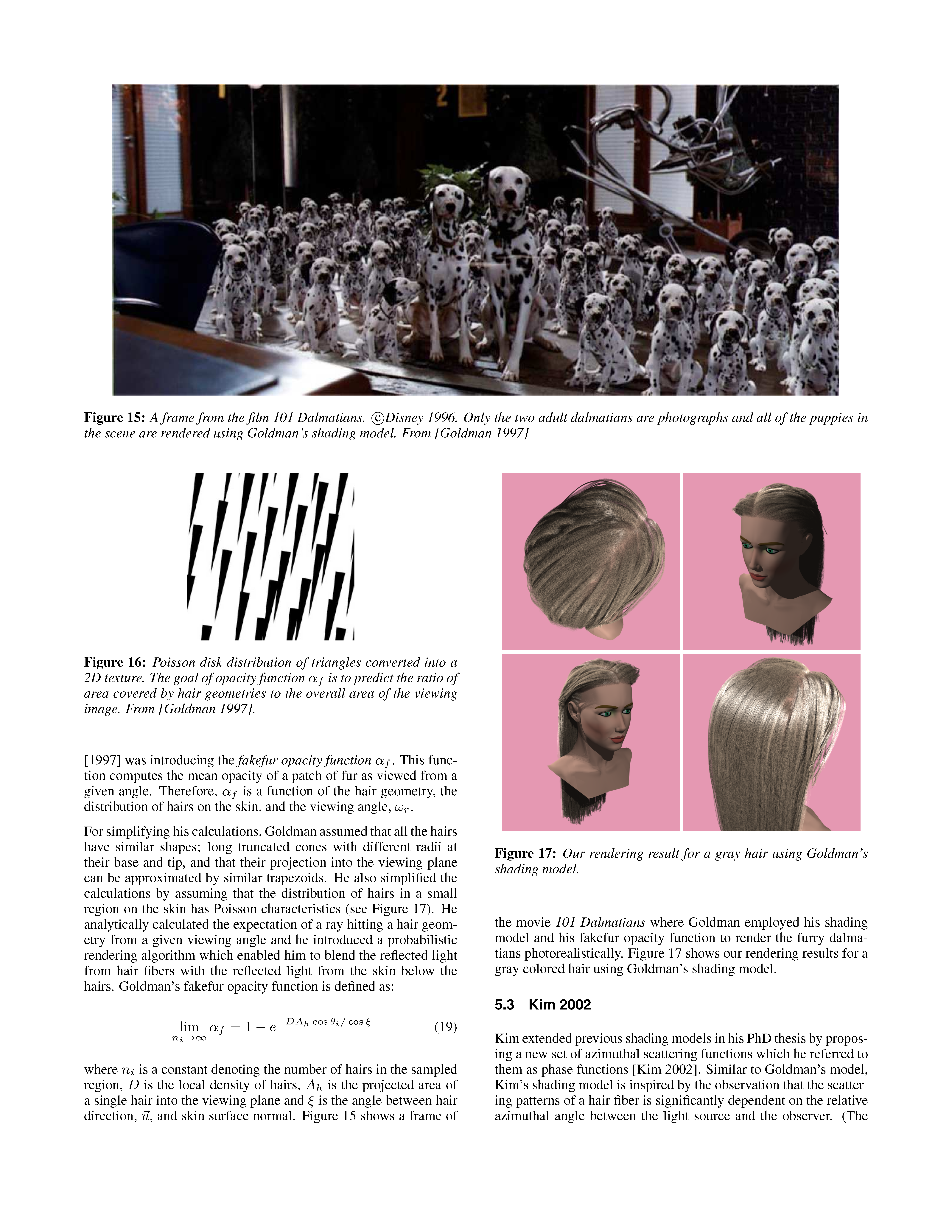

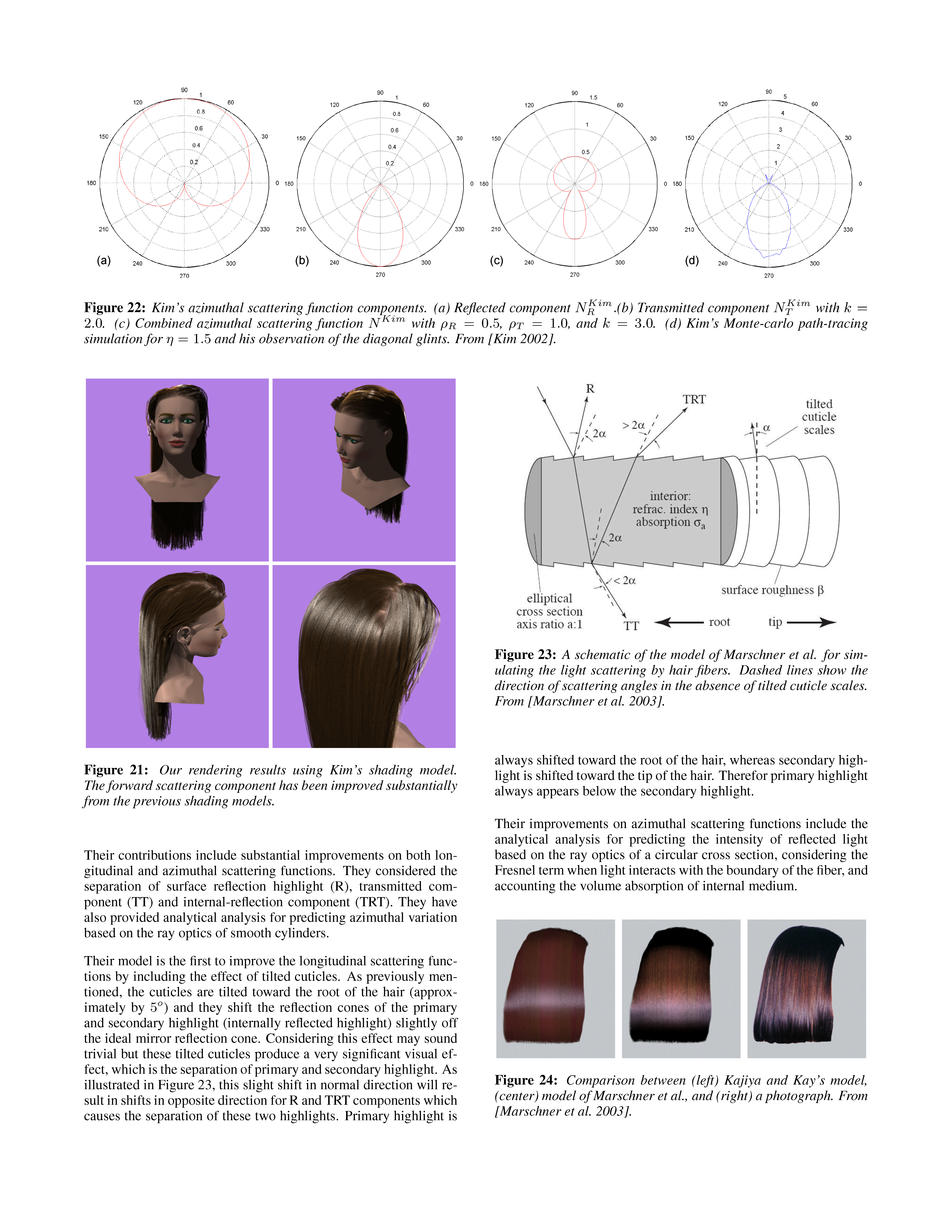

[Page 9]

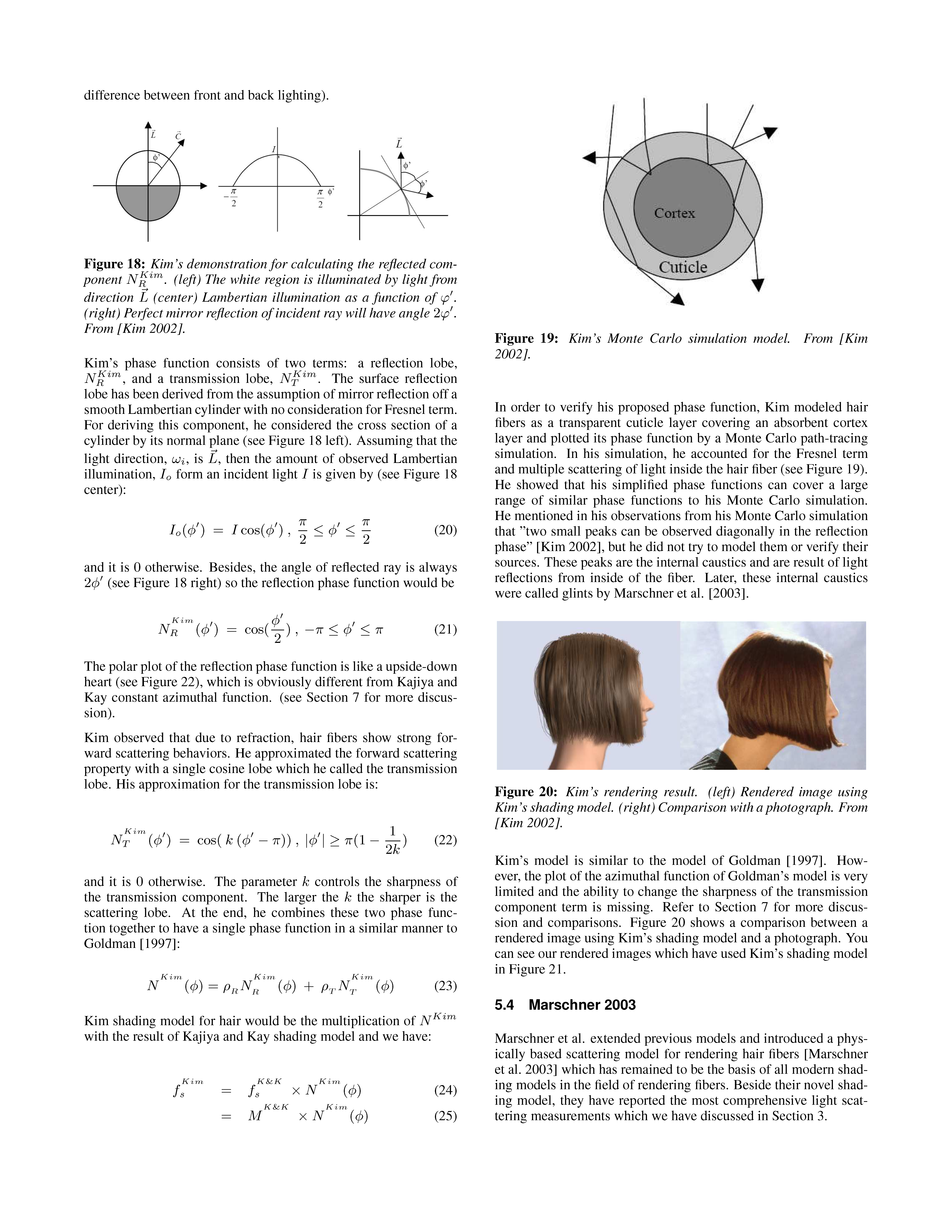

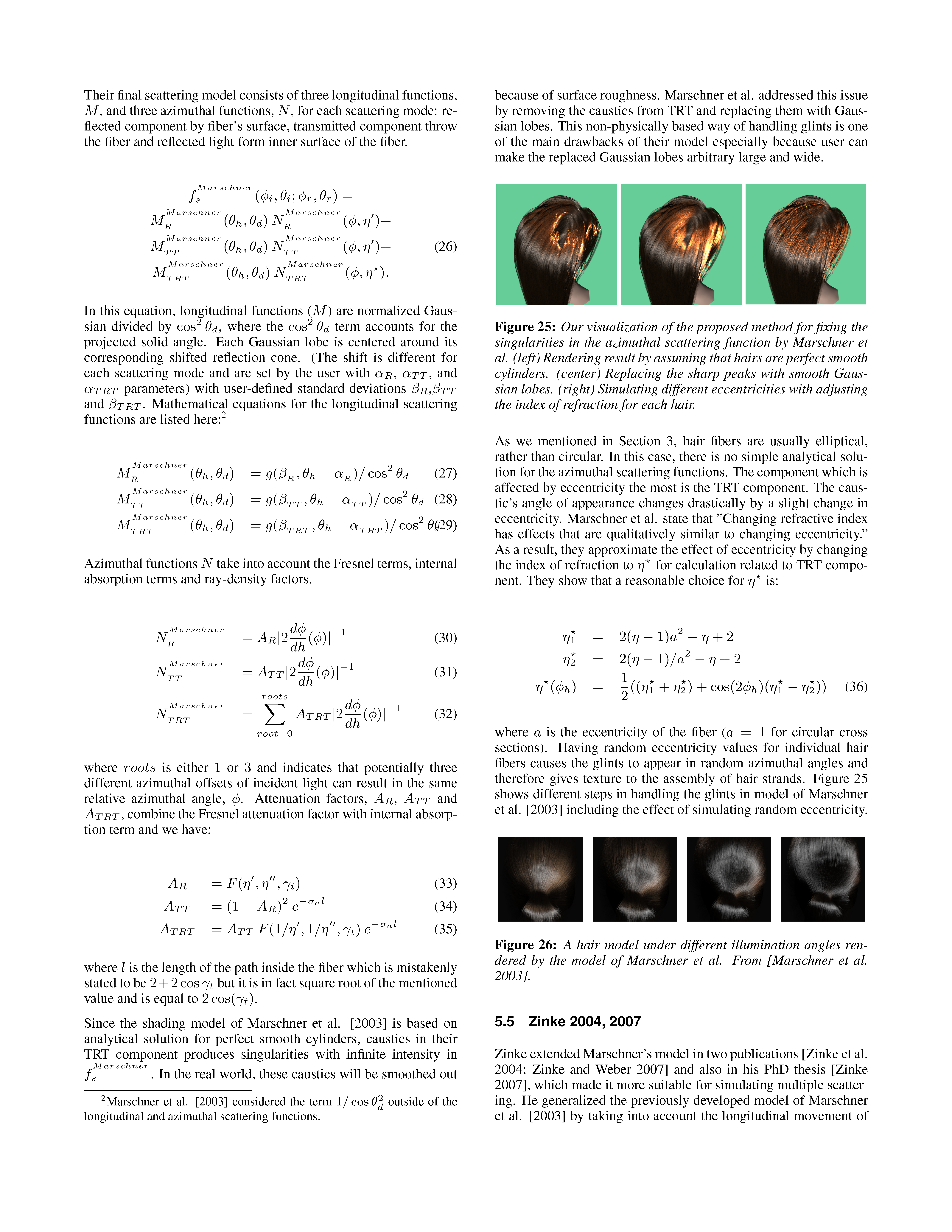

[Page 10]

[Page 11]

[Page 12]

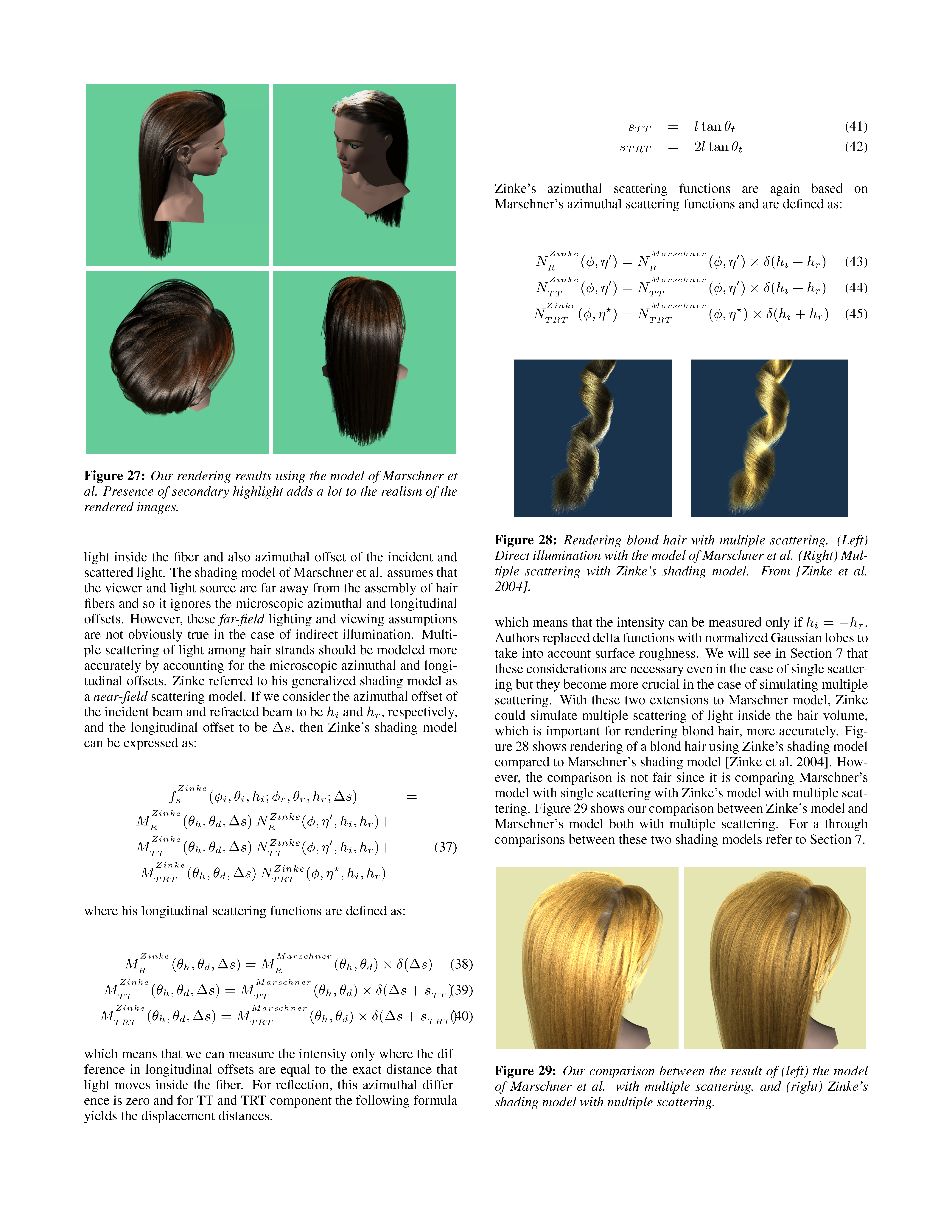

[Page 13]

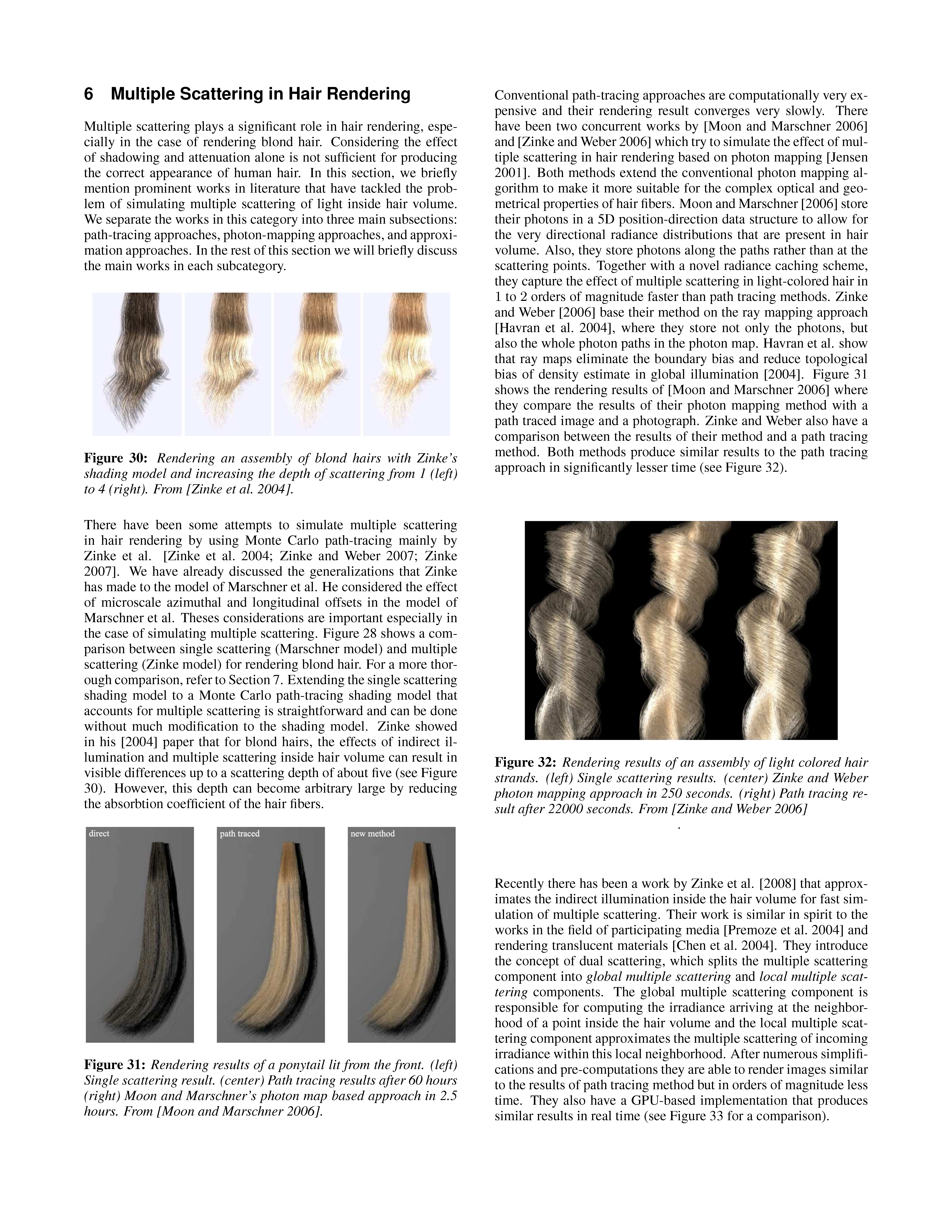

[Page 14]

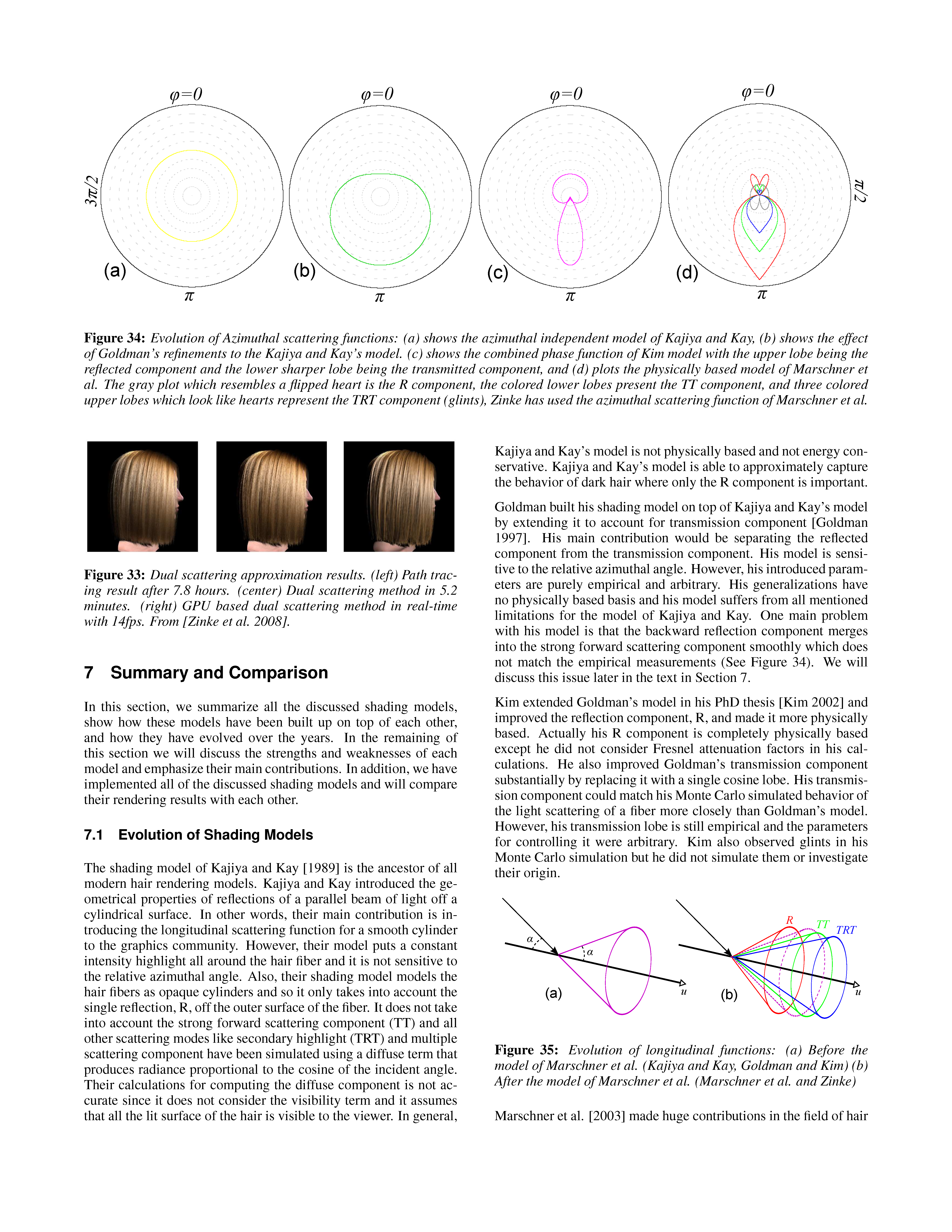

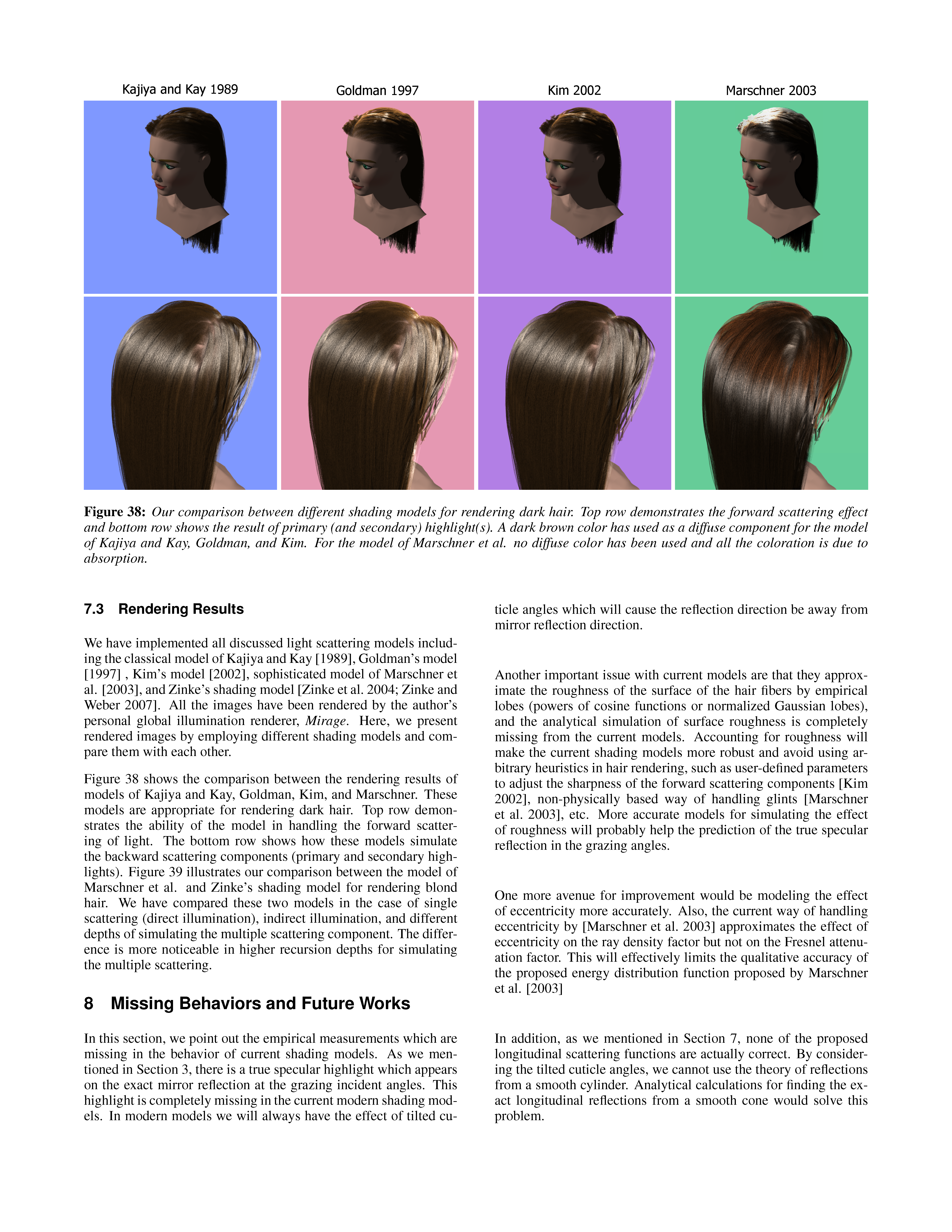

[Page 15]

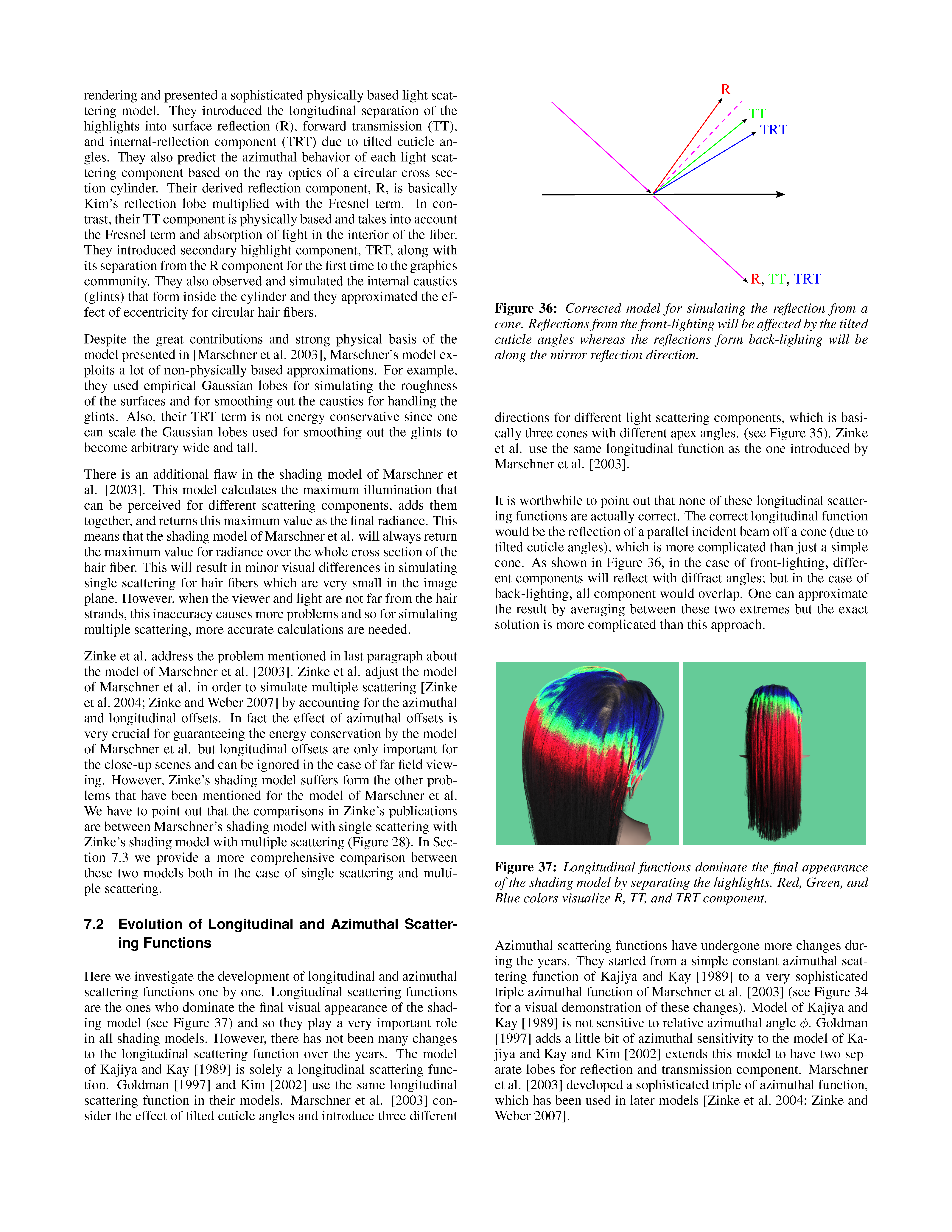

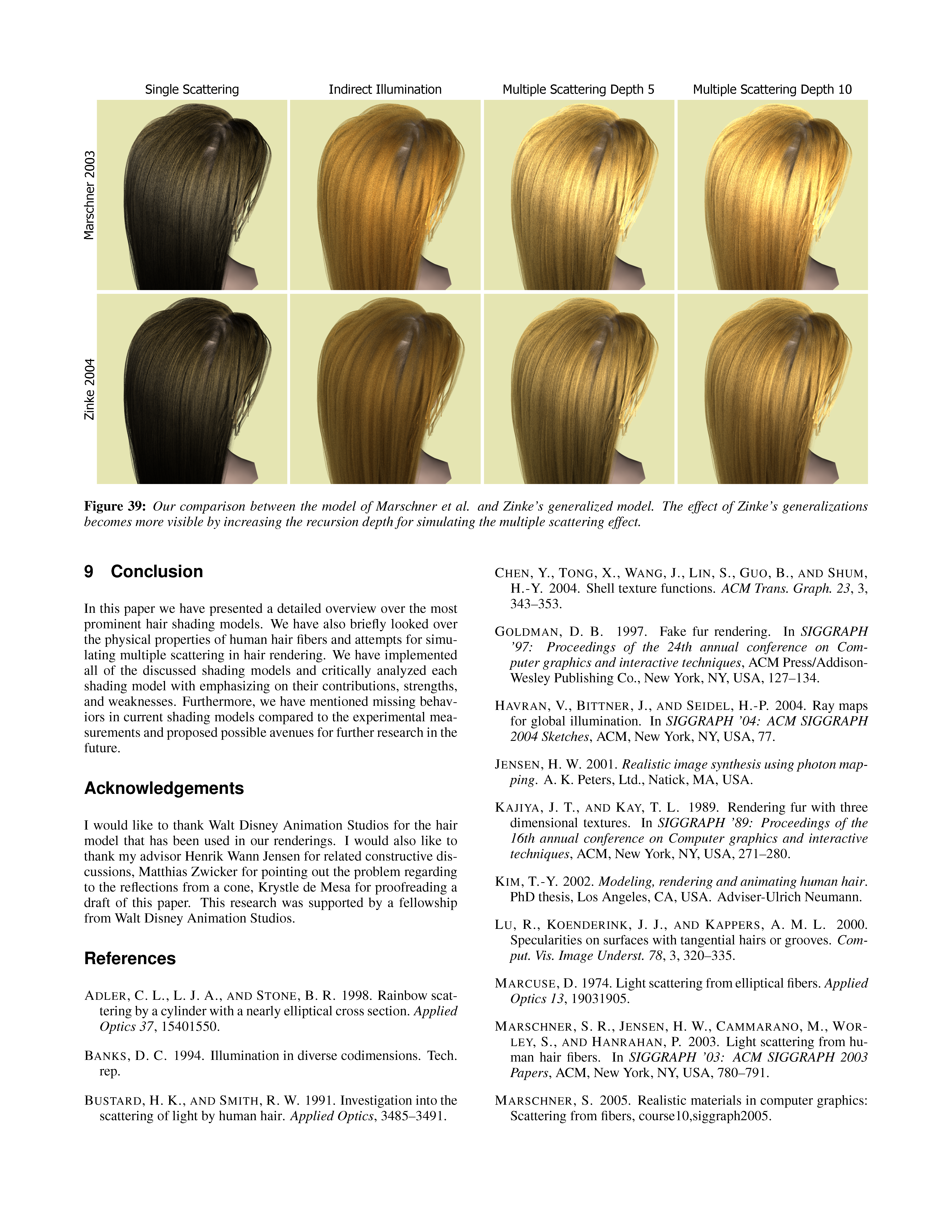

[Page 16]

[Page 17]

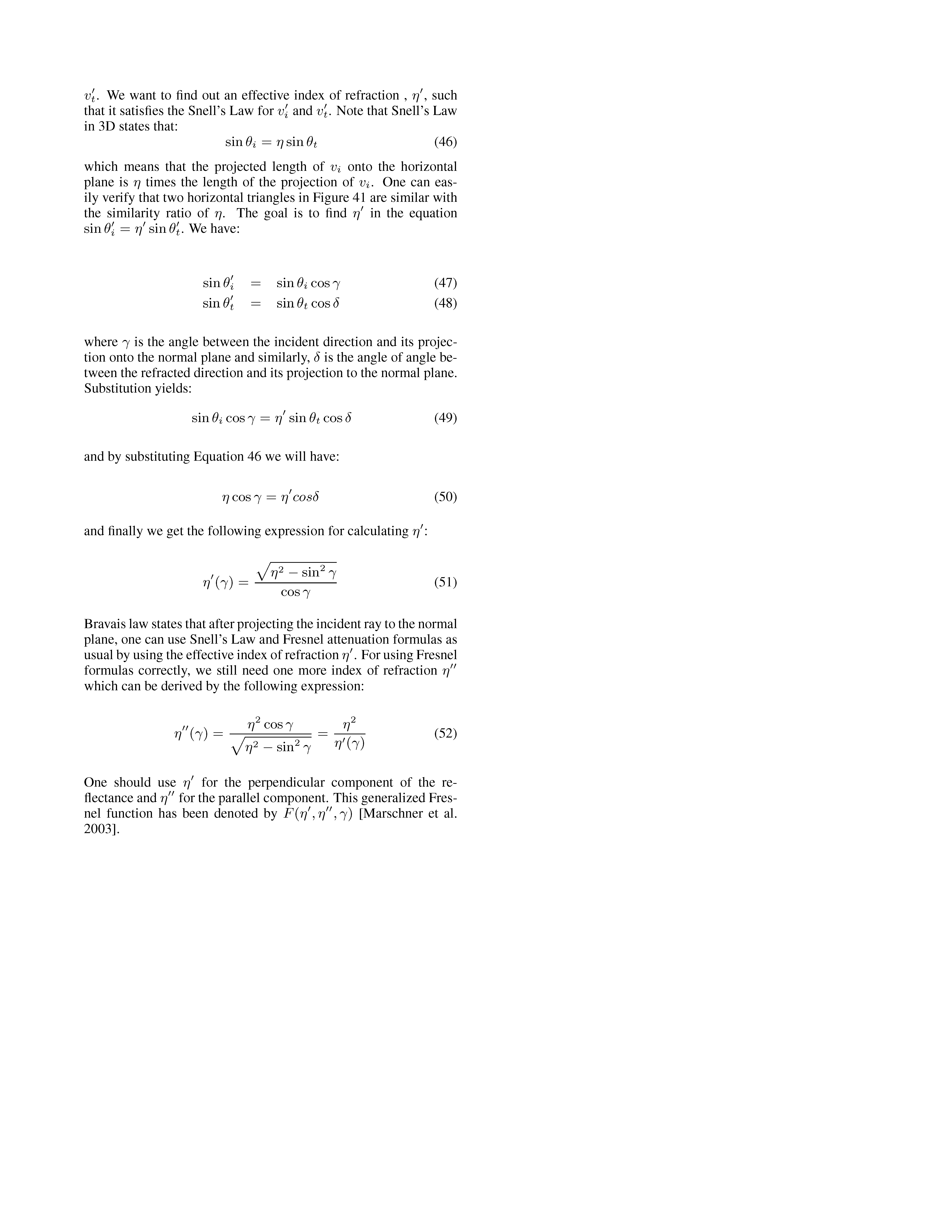

[Page 18]

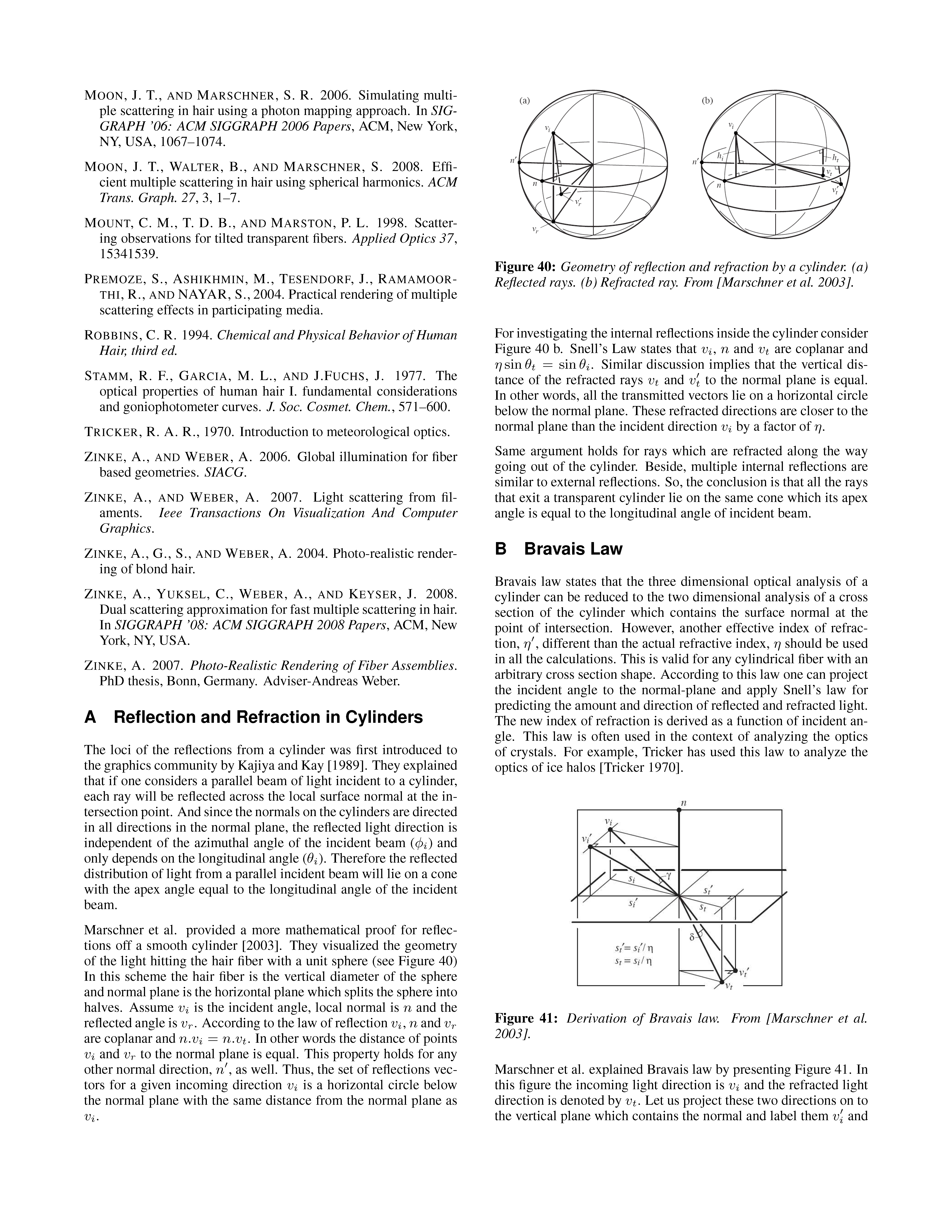

[Page 19]

[Back to Top]

Pages:

[01] [02] [03] [04] [05] [06] [07] [08] [09] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19]

Text Reference:

Iman Sadeghi. Photorealistic Rendering of Human Hair Fibers M.Sc. Thesis, UC San Diego, 2008.

BibTex Reference:

@mastersthesis{sadeghi-2008-msc-thesis,
	author = {Sadeghi, Iman},
	advisor = {Jensen, Henrik Wann},
	title = {Photorealistic Rendering of Human Hair Fibers},
	year = {2008},
	publisher = {UC San Diego},
	address = {La Jolla, CA, USA},
}
